Values in Pie chart MashZone

Sure: the pie chart's attributes can be configured using the inspector panel as depicted below.

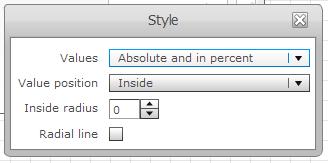

There is a preconfigured set of style attriubutes you might change by activating the button right of the style combobox.

This reveals a settings dialog where you can configure the value description, e.g. without percentages.

Regarding interactions: Actually I am not sure if I understood your problem correctly. If you want to update two charts once the combobox' selection changed you need to define two filter conditions.

It is important to note that you define the filter condition at the chart that shall be animated. Regardless where the action event was triggered. So I suggest that you define the filter rule at the two pie charts both receiving the value to filter for from the selection box.

Thank you very much for the quick respons.

My first problem is solved, thank you!

My second problem not yet.

I want the second pie chart to react on changes in both a selectbox and the first pie

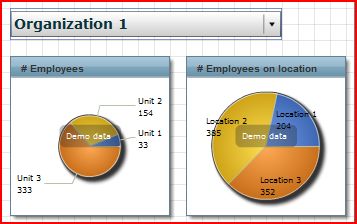

 In my example there are 2 situations:

When I change the Organization, both pies should react (and change)

When I Click on a pie in the "Employees"-chart, I want the "Employees on location" to react (and change)

My tried solutions:

1) Filter both charts by Organization checkbox -> Chart 2 won't react on Chart 1

2) Filter Chart 1 by Organization Checkbox and filter the Chart 2 by Chart 1-> Chart 2 won't react on Organization change

In both situations Chart 2 will be uncorrect after change of Chart 1 or Organization.

3) Filter both charts by Organization checkbox and filter the Chart 2 by Chart 1-> Error message

I am still unsure about your filtering. Your data feed's structure was helpful.

Please note: Although a chart can be filtered by multiple widgets filtering must refer to different columns. Assuming such a data feed for your example:

Column Org is bound to the combo box, Unit to the first chart, Location to the second chart. Data assignment of the second chart looks like this:

Filter values for column Org are obtained from the combo box, filter values for Unit originate at the first chart.

Would you post the error message and corresponding data assignment, please?

I got this working by dubbling the data

When I fill my table like this:



I get the functionality I want.

Select Organization gives 2 correct pies

Click on first pie (unit/KPI filtered by org from selectbox) gives the correct second pie (Location/KPI filtered by org from selectbox and unit from first pie)



My only problem is that I now hav to double all the data in Excel.

Can this be done otherwise (in data-feed functions?)

I am not sure if this is really what you intended to do: The column Org contains Organization O1 and multiple units (U1, U2, U3).

However. If you want to copy things the feed editor offers different operators.

1. Columns - Duplicate creates a copy of an entire column
2. Data feeds - Concatenate combines two feeds by appending the rows. To do this both feeds must have the same column structure.
3. Data feeds - Combine jons columns of one feed with columns of the other. In contrast to concatenate here the feeds might be structured differently except of one or multiple key columns.

   Your MashZone installation ships with an example included: Please take a look at a data feed named "Demo GreenCar roadshow - participants". It combines two feeds (different number of columns and rows)  based on the key column city.

Thank you.

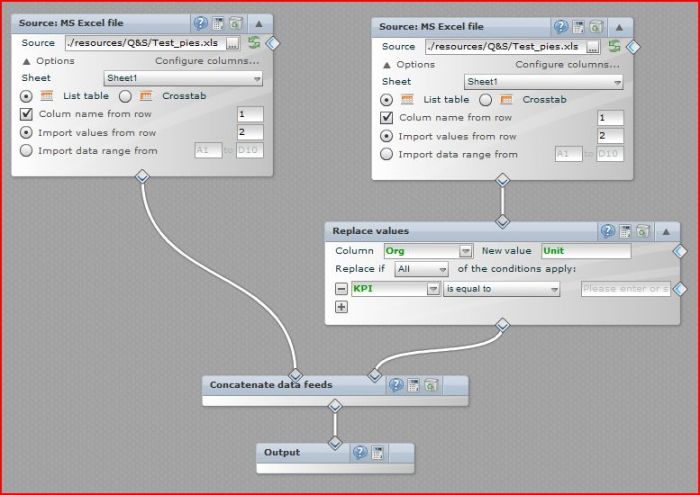

I used the replace and concatenate to extend my table in order to be able to do the "double trigger reaction"

This is how I did it:

So, in combination with the "pie-configuration" (as from tuesday) it is completly doing what I want.
