I would like to create a macro in ARIS 10. The macro I want to develop should work as follows: when I enter a value into Attribute A — for example, "Web Method" — Attribute B should automatically be filled with a predefined value, such as "WM". Has anyone ever created such a macro before? Thanks.
5 Replies
-
Hi,
there is a Macro Event "Object attribute changed" or "Model attribute changed".
If you want to use the macro in Connect Designer, the macro will only be able to start a report.
So all you logic has to be defined in the report.
In the report, you can use "Context.getProperty("attributes")" to retrieve the typenumber of the changed attribute.
KR
Klaus
-
Thanks Klaus — I’ve successfully created the macro by running it as a report, since there’s no function to set attribute values directly within a macro.
-

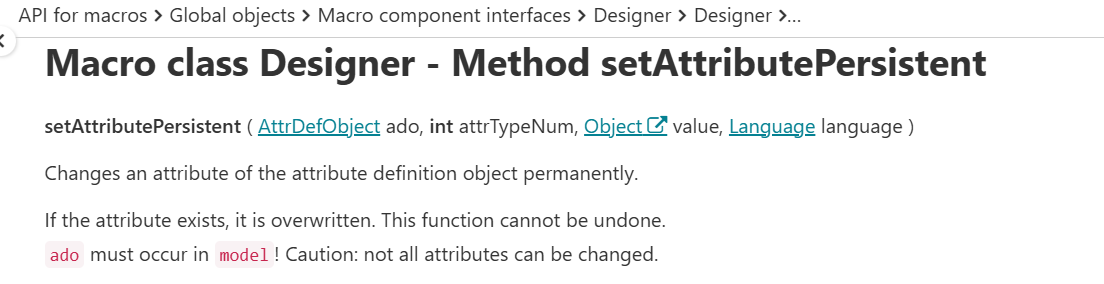

Writing Attributes works with Designer.setAttributePersistent in macro.
Problem is that the Macro API only works for macros in Architect / ARIS Desiger, but not in the Connect Portal / Connect Designer.
In Connect, Macros can only be used to start reports, all the logic needs to be implemented within the report.
KR
Klaus
-
Hi Klaus,
it's still very confusing, what is implemented and what is working in which version. Is there any anouncement/planning when the transfer phase from Client/Server to Cloud is finished.
Regards
Klemens
-
As far as I know, there is no planned date when the "old" Java - ARIS Architect world will be shut down, but of course we're trying to bring all functionality to Connect / Cloud as fast as possible.
Actually, creating APG workflows is one of the few remaining topics that require Architect.
