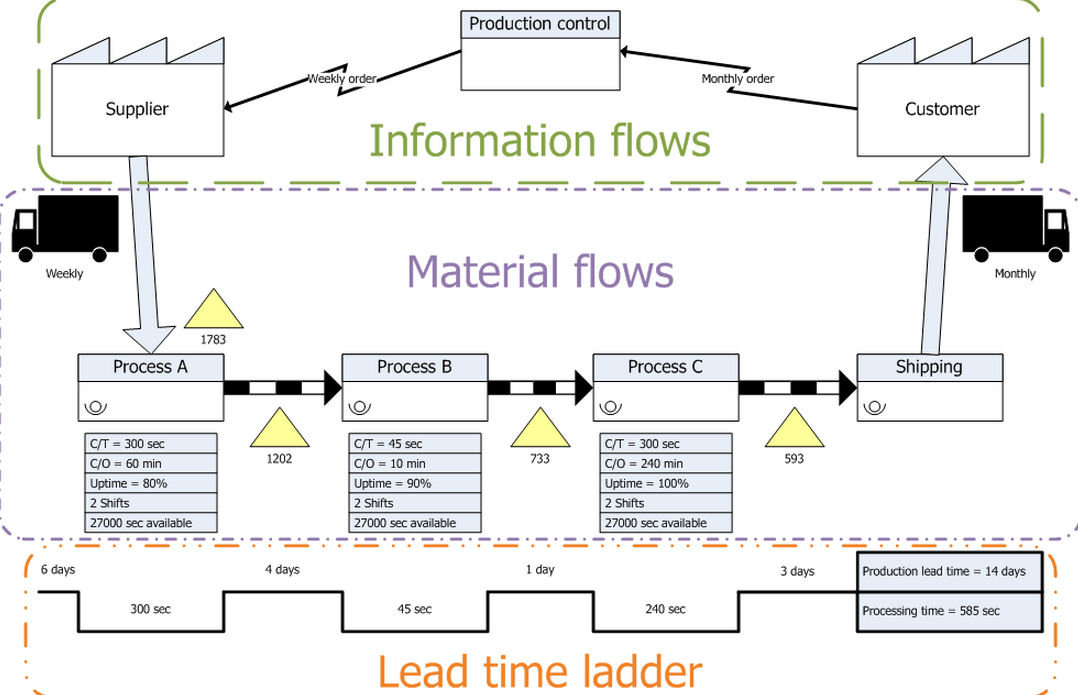

add timescale for a VSM map

Dear Mayur,

Do you have licensed the extension pack ARIS Business Strategy for ARIS Designer (YADBS) or ARIS Architect (YAABS)?

With that you have access to the model type "Value stream map". In ARIS Connect Designer/Viewer that model type is also included.

The ARIS help offers information on Value Stream Maps and its macros and reports:

• http://localhost/abs/help/en/handling/ba/index.htm#35790.htm
• http://localhost/abs/help/en/handling/ba/index.htm#35821.htm

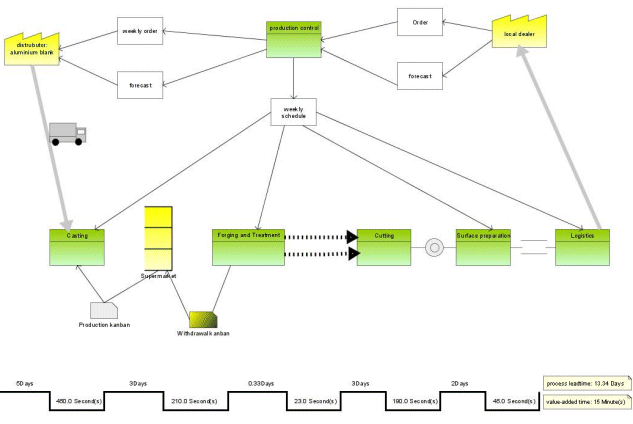

E.g. the macro Timeline draws a timeline of a VSM model:

With the provided modeling conventions for that macro you are able to prepare your VSM model easily:

http://localhost/abs/help/en/handling/ba/index.htm#40442.htm

Cheers

Rune

Thank you Rune for this information.

I am am currently working on VSM module of 9.7... I tried opening the links provided but, not able to open them, not sure if they are accessible through the internet?

I have mapped one VSM, but feel like i need to use all the correct notations ( connector/ Lead time ladder etc), which i was facing issue with.

Will you be able to give me the correct internet link or send me some pdf.

my contact email is mayurakole@gmail.com

Thank,

Mayur

The links you refer to the ARIS help, part of your ARIS installation. Just replace the server name "localhost" with your ARIS server name.

Cheers

Rune

Thanks Rune, I tried to do that but no luck, cant open the link.

The link I tried http://localhost/abs/help/en/handling/ba/index.htm#40442.htm

Error:

404 - File or directory not found.

The resource you are looking for might have been removed, had its name changed, or is temporarily unavailable.

Can you advise what could be the object name that i need to look for?

Thanks,

Mayur

Hi Rune,

I found out the object name, it is "Steering bracket production (current state)", but I am not able to find it in the symbols and not able to use them.

Pls advise..

Thanks,

Mayur

The link is working on ARIS 9.7 and 9.7 SR1. It opens the ARIS help on this page:

Thanks Rune, i tried to find everything, but some how i am still not able to find the specific time scale that will help me put the time scale, ladder. I am able to find the attribute name but that attribute or symbol is not available in the database. I also got the original ARIS VSM mapped and there i can see it, but if i want to use the same it is not available.

Pls advise.. .
