ARIS Aware Filters and Systems variables

Last activity on April 3, 2025 - 17:59 45 Views 1 Reply Professional ARIS

Miriam Fuentes-Cantillana on April 3, 2025

Hi, I have several questions related to the new Dashboard editor:

Is it possible to apply the values of a filter that is on the first tab to the rest of the tabs?

For example, in the first tab the user select a Date and I want to apply it to all the tabs (I don't want to put the filter widget in the rest of tabs, but need the values).

How can I use a System variable (connected user) when using a SQL Select into DataFeed

SELECT * FROM EMPLOYEES
WHERE ID = :VAR

where :VAR would be the connected user

Thanks

Tags: #arisaware

Notify Moderator

Best Reply

Monika Leitner on April 3, 2025

Hi Miriam,

Answering the first question:

Yes you can apply filters over dashboardtabs using user inputs. Per default filters are only set in the context of one tab.

Moving states and keeping states in sync across tabs has to be done by an explicit user interaction.

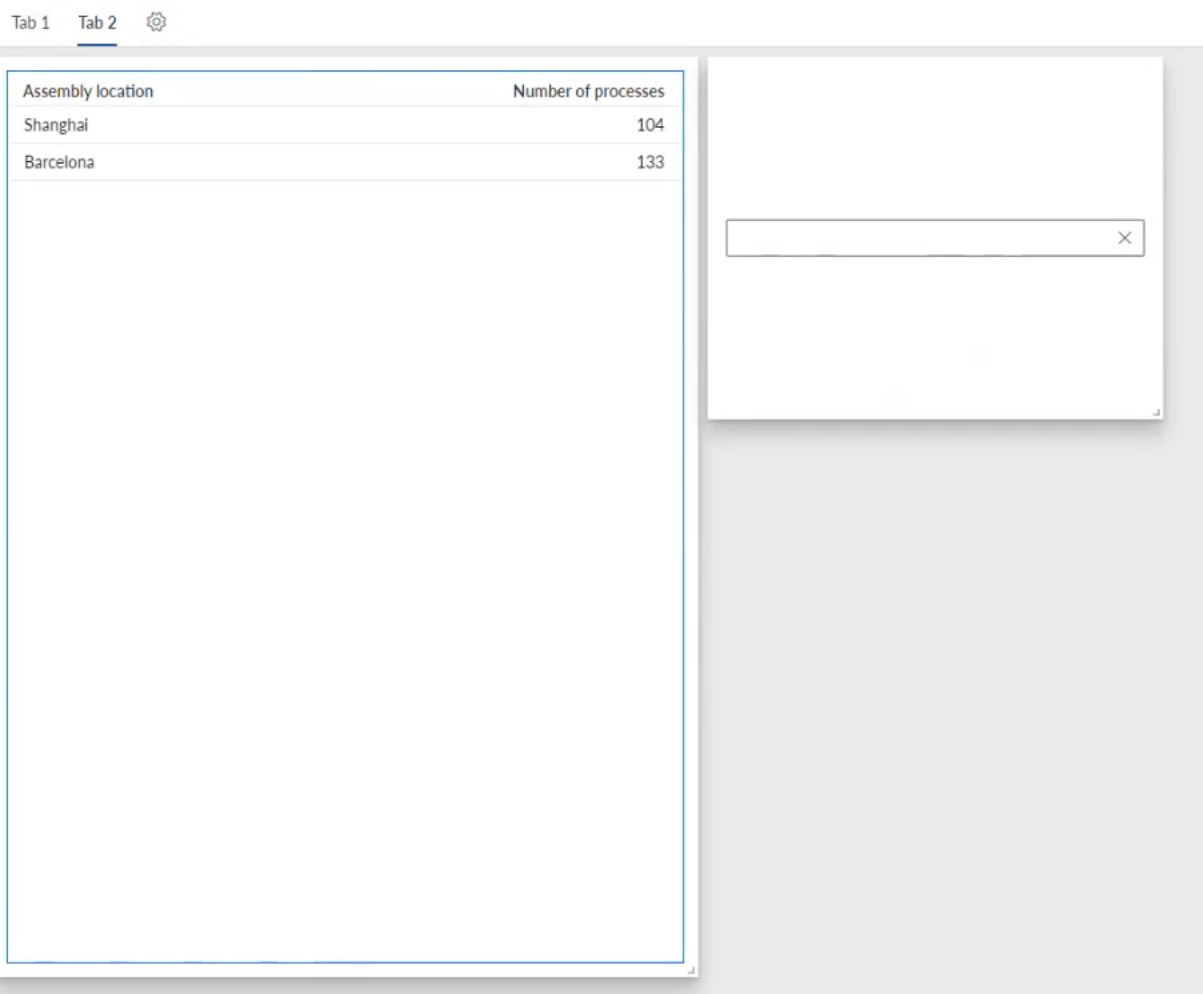

Widget on tab2 which needs to be filtered.	Lets assume you have a table like shown in tab 2 including the assembly locations. this is based on a datafeed with a user variable assemblylist

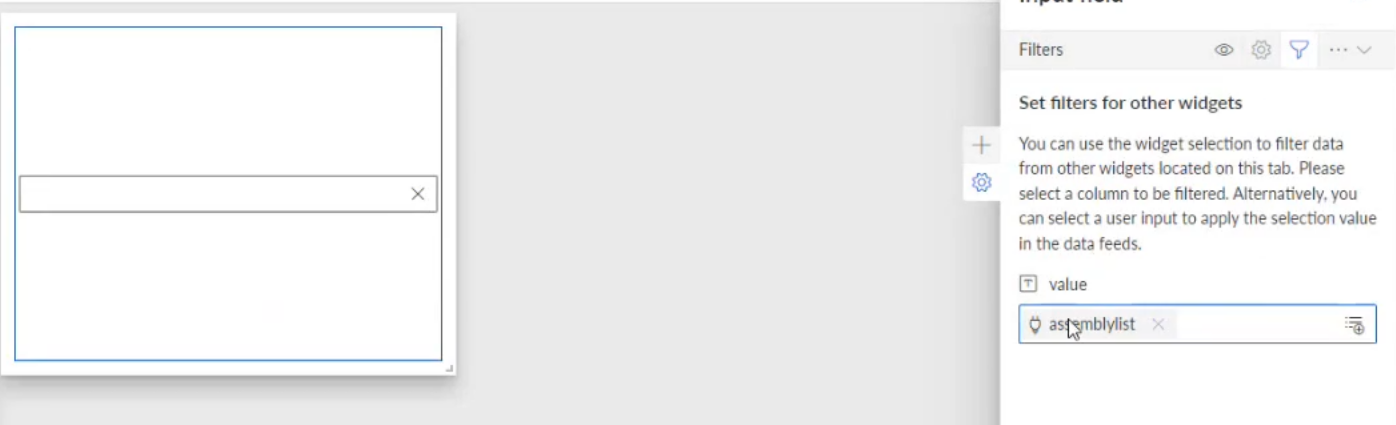

User Input on tab 2 which will be used to synchronize the state	Use user input field - define that value of the input field will filter the user variable assemblylist
	(I have set the ID of the userinput to the name requesttype)
Filter on tab 1 which will set the value of userinput on tab2	On the first tab you can select the widget you want to use for setting the filter (in my case the widget with ID list4) and define an on selection change trigger -> take the value from list4.Assembly location and apply it to inputfied requesttype.value)

Answering the second question

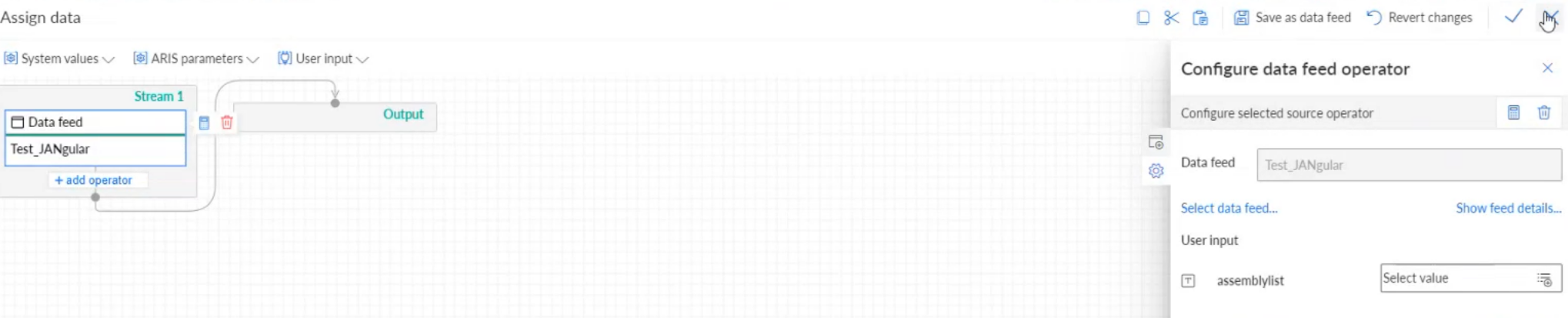

You can use userinputs (like :NUMMA) or system values (like :currentUser) to filter your data

or register to reply.

Show in context Notify Moderator

1 Reply

Monika Leitner on April 3, 2025

Best reply

Hi Miriam,

Answering the first question:

Yes you can apply filters over dashboardtabs using user inputs. Per default filters are only set in the context of one tab.

Moving states and keeping states in sync across tabs has to be done by an explicit user interaction.

Widget on tab2 which needs to be filtered.	Lets assume you have a table like shown in tab 2 including the assembly locations. this is based on a datafeed with a user variable assemblylist


User Input on tab 2 which will be used to synchronize the state	Use user input field - define that value of the input field will filter the user variable assemblylist
	(I have set the ID of the userinput to the name requesttype)
Filter on tab 1 which will set the value of userinput on tab2	On the first tab you can select the widget you want to use for setting the filter (in my case the widget with ID list4) and define an on selection change trigger -> take the value from list4.Assembly location and apply it to inputfied requesttype.value)

Answering the second question

You can use userinputs (like :NUMMA) or system values (like :currentUser) to filter your data

or register to reply.

Notify Moderator
